VSE Dynamic Bus Suspension
VSE Dynamic Bus Suspension
VSE Dynamic Bus Suspension is a hydropneumatic suspension system for both the front axle and the rear axles of a bus. The system is suitable for hybrid and electric city buses that have a high centre of gravity. The system is also very suitable for city buses that frequently make stops where the bus has to kneel.
ContactVSE Dynamic Bus Suspension
THE SYSTEM

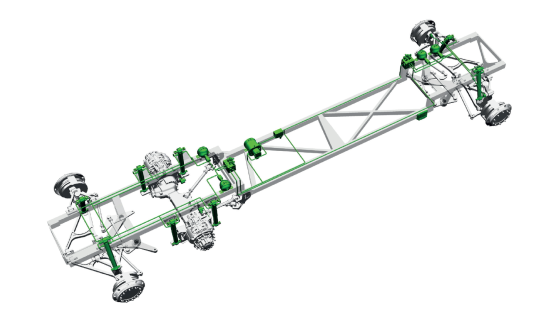

VSE Dynamic Bus Suspension replaces the existing air springs, shock absorbers and stabiliser rods. The hydraulic cylinders bear the weight of the vehicle, the suspension is provided by accumulators and integrated shock absorber valves provide the damping.
The result is a suspension system that ensures optimum driving comfort, axle load distribution and stability.
TECHNICAL SPECIFICATIONS
- up to 3 axles
- Compatible with rigid axles, independent suspension, driven and non-driven axles
- Maximum axle load 13 tonnes
- Customer-specific suspension cylinders
- All components can be mounted in the chassis
- Integrated shock absorbers
OPTIONS
- Additional driving heights
- Automatic kneeling function
- Height adjustment at standstill
- Tyre compression compensation
- Anti-dive function
